ELLIPTICAL WIDE ANGLE LED LAMP

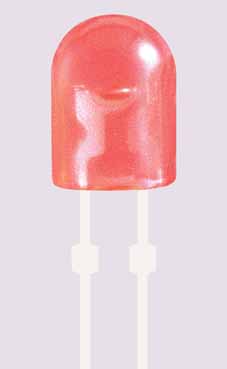

		3.7mm x 5.2mm Elliptical Wide Angle LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Color	at IF=20mA		Viewing Angle (2θ1/2)
Emitted Color	Part Number AL-xxxx	Material	λd(nm)	Lens Color	VF(V)Typ	lv(mcd)Typ	Viewing Angle (2θ1/2)
	AL-V4K3B4D-S	InGaN	470	Color Diff.	3.2-3.6	700	110°/40°
	AL-V4K3UG3D-S	InGaN	525		3.2-3.6	2600
	AL-V4K3UY3D-S	InGaN	590		2.0-2.4	1200
	AL-V4K3OR3D-S	AlGaInP	625		2.0-2.4	1200
	AL-V4K3W3W-S	AlGaInP	X:0.31 Y:0.32		3.2-3.6	2000

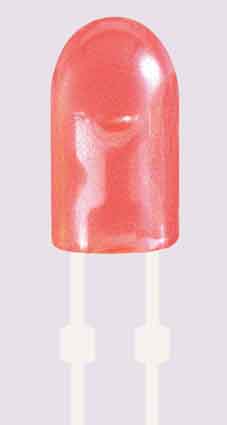

		4.6mm x 5.2mm Elliptical Wide Angle LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Type		at IF=20mA		Viewing Angle (2θ 1/2)
Emitted Color	Part Number AL-xxxx	Material	λd(nm)	Lens Type		VF(V)Typ	lv(mcd)Typ	Viewing Angle (2θ 1/2)
	AL-V7K3B4D-S	InGaN	470	Color Diff.		2.0-2.4	700	70°/35°
	AL-V7K3UG3D-S	InGaN	525				2600
	AL-V7K3UY3D-S	InGaN	590				2000
	AL-V7K3OR3D-S	AlGaInP	625				1300
	AL-V7K3W3W-S	AlGaInP	X:0.31 Y:0.32				1300
