SUPER BRIGHT LED LAMP

		3mm Round LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-314B2C	InGaN	470	Water Clear	3.2	3.5	20	1000	1500	15°
	AL-314B3C							1400	2000
	AL-314B4C							3000	5000
	AL-314B5C							4000	6000
	AL-314B2C-A	InGaN	470	Water Clear	3.2	3.5	20	800	1000	30°
	AL-314B3C-A							1000	1500
	AL-314B4C-A							2500	4000
	AL-314B5C-A							3000	5000
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-314BG1C	InGaN	505	Water Clear	3.2	3.5	20	2800	4000	15°
	AL-314BG3C							4500	6000
	AL-314BG4C							10000	15000
	AL-314BG1C-A	InGaN	505	Water Clear	3.2	3.5	20	2000	3500	30°
	AL-314BG3C-A							3800	5000
	AL-314BG4C-A							4600	7000
	AL-314UG2C	InGaN	525	Water Clear	3.2	3.5	20	3800	5500	15°
	AL-314UG3C							5500	6500
	AL-314UG6C							10000	15000
	AL-314UG2C-A	InGaN	525	Water Clear	3.2	3.5	20	3000	4700	30°
	AL-314UG3C-A							4800	5500
	AL-314UG6C-A							8000	12500
	AL-314TGC	GaP	570	Water Clear	2.0	2.4	20	200	500	15°
	AL-314SGC	AlGalnP	575					900	1000
	AL-314SG1C							400	800
	AL-314TGC-A	GaP	570	Water Clear	2.0	2.4	20	100	300	30°
	AL-314SGC-A	AlGalnP	575					500	800
	AL-314SG1C-A							300	650
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-314UY2C	AlGalnP	590	Water Clear	2.0	2.4	20	1700	2800	15°
	AL-314UY3C	AlGalnP						2500	4000
	AL-314UY5C	AlGalnP						4000	6000
	AL-314TYC	AlGalnP			2.2	2.5		4300	6500
	AL-314UY2C-A	AlGalnP	590	Water Clear	2.0	2.4	20	1000	2100	30°
	AL-314UY3C-A							2000	3000
	AL-314UY5C-A							3000	4500
	AL-314TYC-A				2.2	2.5		3300	5000
	AL-314UOC	AlGalnP	605	Water Clear	2.0	2.4	20	2300	3000	15°
	AL-314UO1C							1000	1500
	AL-314UO5C							1300	2000
	AL-314UOC-A	AlGalnP	605	Water Clear	2.0	2.4		1800	2500	30°
	AL-314UO1C-A							600	1000
	AL-314UO5C-A							1100	1700
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-314OR1C	AlGalnP	625	Water Clear	2.0	2.4	20	1700	2800	15°
	AL-314OR4C							4500	6000
	AL-314OR6C							5000	8000
	AL-314TRC				2.2	2.5		4900	7000
	AL-314OR1C-A	AlGalnP	625	Water Clear	2.0	2.4	20	1000	2000	30°
	AL-314OR4C-A							3500	5000
	AL-314OR6C-A							3000	5000
	AL-314TRC-A				2.2	2.5		3800	5000
	AL-314SRC	GaAlAs	660	Water Clear	2.0	2.5	20	800	1000	15°
	AL-314LRC							1200	1500
	AL-314URC							500	700
	AL-314SRC-A	GaAlAs	660	Water Clear	2.0	2.5	20	100	300	30°
	AL-314LRC-A							500	800
	AL-314URC-A							350	500
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-314WC	InGaN	X: 0.31 Y: 0.32	Water Clear	3.2	3.5	20	700	1000	15°
	AL-314W1C							1400	2000
	AL-314W2C							2400	3500
	AL-314W3C							3500	5000
	AL-314W5C							5000	7000
	AL-314WC-A	InGaN	X: 0.31 Y: 0.32	Water Clear	3.2	3.5	20	500	700	30°
	AL-314W1C-A							1200	1800
	AL-314W2C-A							1600	2400
	AL-314W3C-A							2800	4300
	AL-314W5C-A							3000	6000
	AL-314IPC	InGaN	X: 0.36 Y: 0.21	Water Clear	3.2	3.5	20	1200	1800	20°

		5mm Round LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-513CUVC	InGaN	395	Water Clear	3.2	3.5	20	55	80	15°
	AL-513CUVC-A	InGaN	395	Water Clear	3.2	3.5	20	35	50	30°
	AL-513B2C	InGaN	470	Water Clear	3.2	3.5	20	1500	2500	15°
	AL-513B3C							1700	3000
	AL-513B4C							3500	4000
	AL-513B5C							5500	6500
	AL-513B2C-A	InGaN	470	Water Clear	3.2	3.5	20	800	1800	30°
	AL-513B3C-A							1000	2300
	AL-513B4C-A							3300	4400
	AL-513B5C-A							4500	5500
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-513BG1C	InGaN	505	Water Clear	3.2	3.5	20	4900	7000	15°
	AL-513BG3C							7000	9000
	AL-513BG4C							10000	15000
	AL-513BG1C-A			Water Clear	3.2	3.5	20	3500	5000	30°
	AL-513BG3C-A							4000	6000
	AL-513BG4C-A							7000	10000
	AL-513UG2C	InGaN	525	Water Clear	3.2	3.5	20	7000	8000	15°
	AL-513UG3C							9000	11000
	AL-513UG6C							15000	21000
	AL-513UG2C-A	InGaN	525	Water Clear	3.2	3.5	20	3000	4500	30°
	AL-513UG3C-A							6000	8000
	AL-513UG6C-A							10000	15000
	AL-513TGC	GaP	570	Water Clear	2.0	2.4	20	500	800	15°
	AL-513SGC	AlGalnP	575					1800	2500
	AL-513SG1C							700	1000
	AL-513TGC-A	GaP	570	Water Clear	2.0	2.4	20	300	500	30°
	AL-513SGC-A	AlGalnP	575					800	1500
	AL-513SG1C-A							500	700
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-513UY2C	AlGalnP	590	Water Clear	2.0	2.4	20	3000	4000	15°
	AL-513UY3C							4000	5000
	AL-513UY5C							9000	11000
	AL-513TYC				2.2	2.5		7000	10000
		AlGalnP	590	Water Clear	2.0	2.4	20	2000	3000	30°
	AL-513UY2C-A
	AL-513UY3C-A							3000	4000
	AL-513UY5C-A							6000	9000
	AL-513TYC-A				2.2	2.5		6000	9000
	AL-513UOC	AlGalnP	605	Water Clear	2.0	2.4	20	3000	4000	15°
	AL-513UO1C							1700	2000
	AL-513UO5C							3000	4000
	AL-513UOC-A	AlGalnP	605	Water Clear	2.0	2.4	20	2000	3000	30°
	AL-513UO1C-A							800	1000
	AL-513UO5C-A							1300	2000
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-513OR1C	AlGalnP	625	Water Clear	2.0	2.4	20	2700	3800	15°
	AL-513OR4C							9000	13000
	AL-513OR6C							10000	14000
	AL-513TRC				2.2	2.5		9200	12000
	AL-513OR1C-A	AlGalnP	625	Water Clear	2.0	2.4	20	2000	3000	30°
	AL-513OR4C-A							6000	9000
	AL-513OR6C-A							5000	7000
	AL-513TRC-A				2.2	2.5		7300	9600
	AL-513LRC	GaAlAs	660	Water Clear	2.0	2.5	20	1800	2000	15°
	AL-513SRC							900	1200
	AL-513URC							2500	3000
	AL-513LRC-A	GaAlAs	660	Water Clear	2.0	2.5	20	800	1000	30°
	AL-513SRC-A							200	500
	AL-513URC-A							1500	2000
Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-513WC	InGaN	X:0.31 Y:0.32	Water Clear	3.2	3.5	20	1000	1500	15°
	AL-513W1C							2400	3500
	AL-513W2C							3500	5000
	AL-513W3C							6800	8000
	AL-513W5C							10000	15000
	AL-513WC-A	InGaN	X:0.31 Y:0.32	Water Clear	3.2	3.5	20	800	1000	30°
	AL-513W1C-A							1400	2500
	AL-513W2C-A							2400	3500
	AL-513W3C-A							5800	7000
	AL-513W5C-A							6000	9000
	AL-513IPC	GaN	X:0.36 Y:0.21	Water Clear	3.2	3.5	20	1400	2000	20°

		8mm Round LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-813B4C	InGaN	470	Water Clear	3.2	3.5	20	3000	5000	30°
	AL-813BG1C	InGaN	505	Water Clear	3.2	3.5	20	3500	5000	30°
	AL-813BG4C							10000	13000
	AL-813UG1C	InGaN	525	Water Clear	3.2	3.5	20	2300	5000	30°
	AL-813UG5C							15000	20000
	AL-813UY4C	AlGalnP	590	Water Clear	2.0	2.4	20	6000	9000	30°
	AL-813UY6C							8000	10000
	AL-813TYC				2.2	2.5		3600	5500
	AL-813UO6C	AlGalnP	610	Water Clear	2.0	2.4	20	2500	4000
										30°
	AL-813OR5C	AlGalnP	625	Water Clear	2.0	2.4	20	3600	5600	30°
	AL-813OR6C							8000	10000
	AL-813TRC				2.2	2.5		3600	5500
	AL-813W6C	InGaN	X:0.31 Y:0.32	Water Clear	3.2	3.5	20	15000	20000	30°

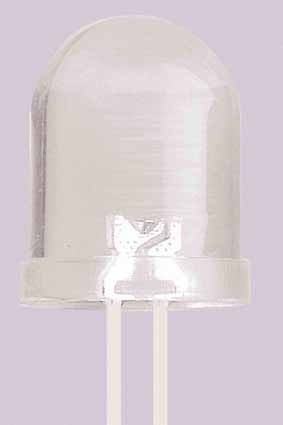

		10mm Round LED

Emitted Color	Part Number AL-xxxx	Chip		Lens Color	VF(V)at IF=20mA		Iv(mcd)			Viewing Angle (2θ 1/2)
		Material	λd(nm)		Typ	Max	at IF=mA	Min	Typ
	AL-103B4C	InGaN	470	Water Clear	3.2	3.5	20	1500	3000	30°
	AL-103BG1C	InGaN	505	Water Clear	3.2	3.5	20	3500	5000	30°
	AL-103BG4C							8000	10000
	AL-103UG1C	InGaN	525	Water Clear	3.2	3.5	20	6000	9000	30°
	AL-103UG4C							8000	10000
	AL-103UY2C	AlGalnP	590	Water Clear	2.0	2.4	20	4100	6000	30°
	AL-103UY5C							5000	8000
	AL-103TYC				2.2	2.5		3000	4500
	AL-103UO6C	AlGalnP	605	Water Clear	2.0	2.4	20	2000	3000	30°
	AL-103OR1C	AlGalnP	625	Water Clear	2.0	2.4	2.0	3600	5600	30°
	AL-103OR6C							7000	10000
	AL-103TRC				2.2	2.5	20	3000	4500
	AL-103W2C	InGaN	X:0.31 Y:0.32	Water Clear	3.2	3.5	20	3500	5000	30°
	AL-103W5C							7000	10000
