FULL COLOR BLINKING LED LAMP

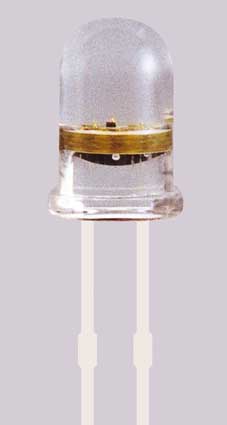

  2 Pin Flash LED LAMP

Emitted Color
Part Number
AL-xxxx
Chip
Lens Color
at IF=20mA
Viewing
Angle
(2£c 1/2)
Material
£fd(nm)
VF(V)Typ
lv(mcd)Typ
5mm 2PIN slow flash type full color LED

AlGaInP
625
Water
Clear
2.0
2000
30°

InGaN
525
3.3
4500
30°

InGaN
470
3.3
500
30°
5mm 2PIN Fast flash type full color LED

AlGaInP
625
Water
Clear
2.0
2000
30°

InGaN
525
3.3
4500
30°

InGaN
470
3.3
500
30°

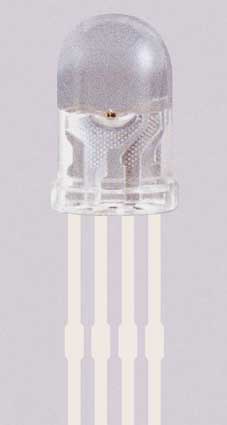

  4 Pin Full Color LED LAMP

Emitted Color
Part Number
AL-xxxx
Chip
Lens Color
at IF=20mA
Viewing
Angle
(2£c 1/2)
Material
£fd(nm)
VF(V)Typ
lv(mcd)Typ
5mm 4pin full color LED common cathode with water clear lens
  AL-513RGBC-C-002
AlGaInP
625
Water
Clear
2.0
1200
20°

InGaN
515
3.3
3700
20°

InGaN
470
3.3
700
20°
5mm 4pin full color LED common cathode with white diffused lens
  AL-513RGBW-C-002
AlGaInP
625
White
Diffused
2.0
600
45°

InGaN
520
3.3
1000
45°

InGaN
470
3.3
200
45°
5mm 4pin full color LED common anode with water clear lens

AlGaInP
625
Water
Clear
2.0
1200
20°

InGaN
515
3.3
3700
20°

InGaN
470
3.3
700
20°
5mm 4pin full color LED common anode with white diffused lens

AlGaInP
625
White
Diffused
2.0
600
45°

InGaN
520
3.3
1000
45°

InGaN
470
3.3
200
45°
Emitted Color
Part Number
AL-xxxx
Chip
Lens Color
at IF=20mA
Viewing
Angle
(2£c 1/2)
Material
£fd(nm)
VF(V)Typ
lv(mcd)Typ
5mm 4pin full color LED common cathode with water clear lens
  AL-513RGBC-C-004
AlGaInP
625
Water
Clear
2.0
400
20°

InGaN
525
3.3
1500
20°

InGaN
470
3.3
400
20°
5mm 4pin full color LED common cathode with white diffused lens
  AL-513RGBW-C-004
AlGaInP
625
White
Diffused
2.0
100
55°

InGaN
525
3.3
800
55°

InGaN
470
3.3
100
55°
5mm 4pin full color LED common anode with water clear lens

AlGaInP
625
Water
Clear
2.0
400
20°

InGaN
525
3.3
1500
20°

InGaN
470
3.3
400
20°
5mm 4pin full color LED common anode with white diffused lens

AlGaInP
625
White
Diffused
2.0
100
55°

InGaN
525
3.3
800
55°

InGaN
470
3.3
100
55°
