.......A-BRIGHT.......

CHINA PATENT NO.453719

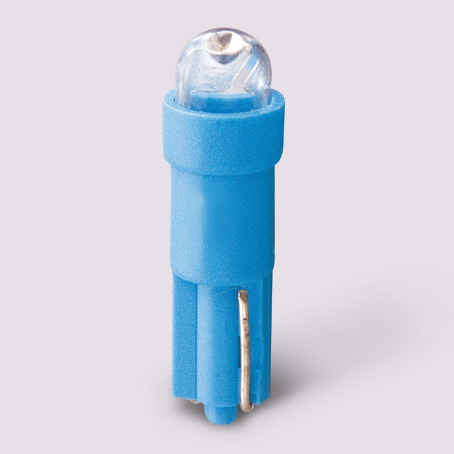

SINGLE LAMP LED BULB

WEDGE BASE T-5 SERIES

		WEDGE BASE T-5

Emitted Color	Part Number AB-xxxx	Material	Wave Length λd(nm)	Bases Model	Operate Voltage (V)	Forward Current @Vin(mA)	Luminous Intensity (mcd)		Polarity
							Min.	Typ.
	AB-46B5-5VD-T5	InGaN	470	T5	5	20	300	400	DC
	AB-46B5-6VD-T5				6
	AB-46B5-12VD-T5				12
	AB-46B5-24VD-T5				24	15	230	300
	AB-46G1-5VD-T5	InGaN	525	T5	5	20	470	500	DC
	AB-46G1-6VD-T5				6
	AB-46G1-12VD-T5				12
	AB-46G1-24VD-T5				24	15	270	360
	AB-46TY-5VD-T5	AlGaInP	590	T5	5	20	760	1000	DC
	AB-46TY-6VD-T5				6
	AB-46TY-12VD-T5				12
	AB-46TY-24VD-T5				24	15	430	570
	AB-46TR-5VD-T5	AlGaInP	630	T5	5	20	760	1000	DC
	AB-46TR-6VD-T5				6
	AB-46TR-12VD-T5				12
	AB-46TR-24VD-T5				24	15	430	570
	AB-46W3-5VD-T5	InGaN	Chromaticity Coordinates X:0.31 Y:0.32	T5	5	20	500	600	DC
	AB-46W3-6VD-T5				6
	AB-46W3-12VD-T5				12
	AB-46W3-24VD-T5				24	15	370	480
