SUPER FLUX INFRARED LED LAMP

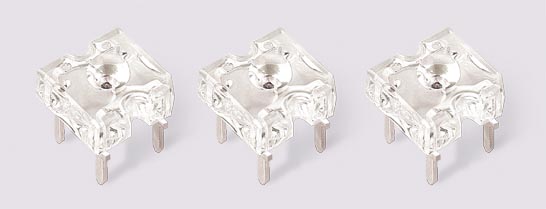

3mm SUPER FLUX IR LED
Lens Type
Part Number
AL-xxxx
Material
Wavelength
£fp(nm)
at l
F
=50mA
Viewing
Angle
(2£c 1/2)
V
F
(V)Typ
V
F
(V)Max
Power
(mW/sr) Typ
Water Clear
AL-31-40IRC-850
GaAlAs/GaAs
850
1.5
1.6
35
40°
AL-31-30IRC-850
1.5
1.6
50
30°
AL-31-15IRC-850
1.5
1.6
75
15°

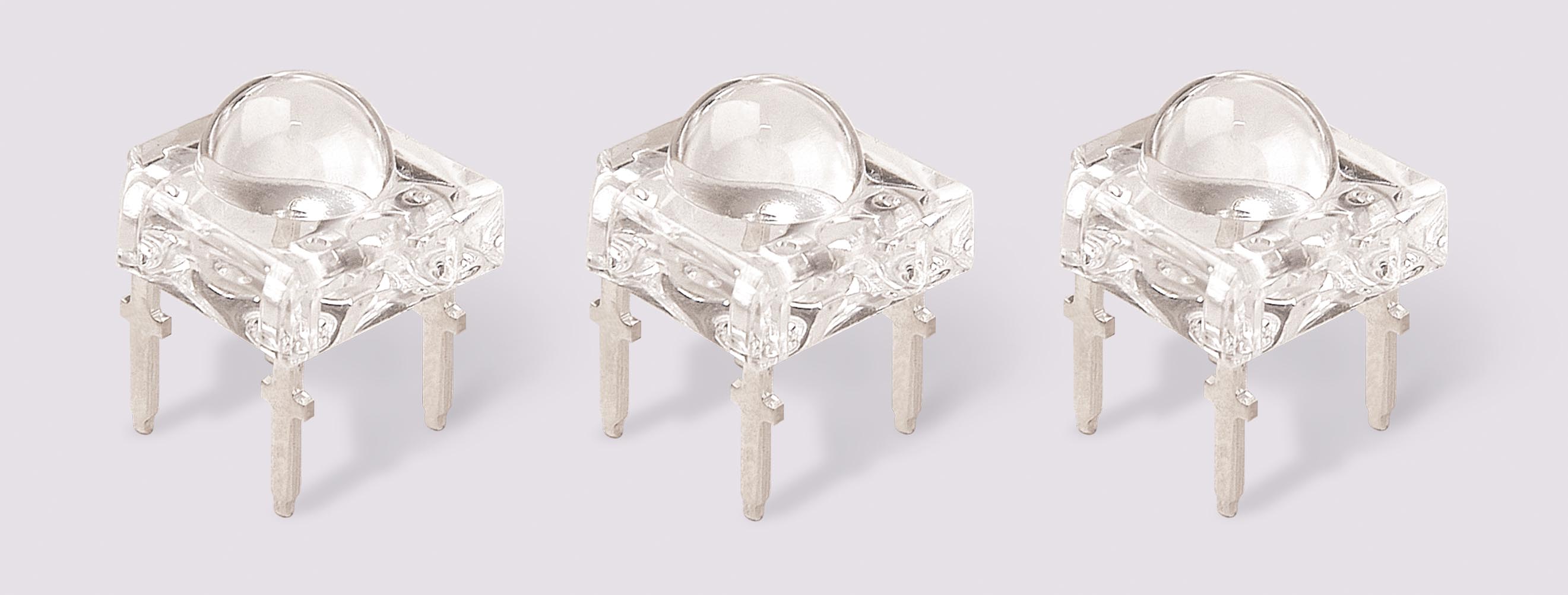

5mm SUPER FLUX IR LED
Lens Type
Part Number
AL-xxxx
Material
Wavelength
£fp(nm)
at l
F
=50mA
Viewing
Angle
(2£c 1/2)
V
F
(V)Typ
V
F
(V)Max
Power
(mW/sr) Typ
Water Clear
AL-50-40IRC-850
GaAlAs/GaAs
850
1.5
1.6
30
40°
AL-50-30IRC-850
1.5
1.6
50
30°
