CHINA PATENT NO.453719

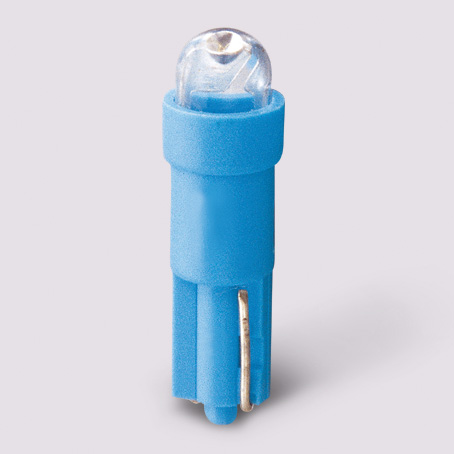

SINGLE LAMP LED BULB
WEDGE BASE T-5 SERIES
  WEDGE BASE T-5

Emitted Color
Part Number
AB-xxxx
Material
Wave
Length £fd(nm)
Bases
Model
Operate Voltage
(V)
Forward Current @Vin(mA)
Luminous
Intensity
(mcd)
Polarity
Min.
Typ.

InGaN
470
T5
5
20
300
400
DC
6
12
24
15
230
300

InGaN
525
T5
5
20
470
500
DC
6
12
24
15
270
360

AlGaInP
590
T5
5
20
760
1000
DC
6
12
24
15
430
570

AlGaInP
630
T5
5
20
760
1000
DC
6
12
24
15
430
570

InGaN
Chromaticity
Coordinates
X:0.31
Y:0.32
T5
5
20
500
600
DC
6
12
24
15
370
480
