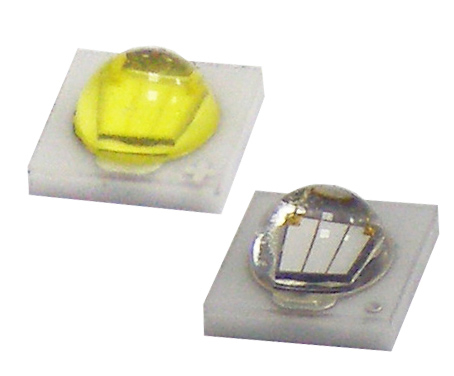

HIGH POWER LED
  3535 1W 120X


Emitted Color
Part Number
AL-xxxx
Material
CCT(K)
fd(nm)
Lens
Color
at IF=350mA
Viewing Angle (2c1/2)
VF(V)Min
VF(V)Max
Flux(Typ.)

lnGaN
5700K
Water
Clear
2.75
3.5
120
120°

lnGaN
3000K
2.75
3.5
110

lnGaN
4000K
2.75
3.5
110

  3535 3W 120X


Emitted Color
Part Number
AL-xxxx
Material
CCT(K)
fd(nm)
Lens
Color
at IF=700mA
Viewing Angle (2c1/2)
VF(V)Min
VF(V)Max
Flux(Typ.)

lnGaN
5700K
Yellow Diffused
2.8
3.6
205
120°

  3535 UV 120X


Emitted Color
Part Number
AL-xxxx
Material
Peak Wavelength
Lens
Color
at IF=500mA
Viewing Angle (2c1/2)
VF(V)Min
VF(V)Max
Power Consumption

lnGaN
380-390nm
Water
Clear
3
4

660mW

120°

lnGaN
390-400nm
3
4
660mW

lnGaN
410-420nm
3
4
700mW

lnGaN
410-420nm
3
4
700mW
